Cleveland Steel Tool

417 Die

417

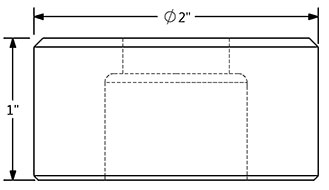

Specifications

  • Outside Diameter2"
  • Height1"

Equivalent Part Numbers

  • CPDF-59
  • APC317
  • PWJC

Stock Sizes shown. If you don't see the size you need, scroll down to the bottom, click "any size not shown" and enter your size

Need help finding your die size?
  • Please input valid thickness.
  • Please select material type.
  • Please select material size.
  • Die Clearance 0.000"
  • Die Size 0.000"
Part No. Size Description Locating Spot Availability Price Quantity Purchase
41705 5/32 (0.156)" 417 Round Die 5/32 None Same Day $18.25
41706 3/16 (0.188)" 417 Round Die 3/16 None Same Day $18.25
41707 7/32 (0.219)" 417 Round Die 7/32 None Same Day $18.25
41708 1/4 (0.250)" 417 Round Die 1/4 None Same Day $18.25
41709 9/32 (0.281)" 417 Round Die 9/32 None Same Day $18.25
41710 5/16 (0.313)" 417 Round Die 5/16 None Same Day $18.25
41711 11/32 (0.344)" 417 Round Die 11/32 None Same Day $18.25
41712 3/8 (0.375)" 417 Round Die 3/8 None Same Day $18.25
41713 13/32 (0.406)" 417 Round Die 13/32 None Same Day $18.25
41714 7/16 (0.438)" 417 Round Die 7/16 None Same Day $18.25
41715 15/32 (0.469)" 417 Round Die 15/32 None Same Day $18.25
41716 1/2 (0.500)" 417 Round Die 1/2 None Same Day $18.25
41717 17/32 (0.531)" 417 Round Die 17/32 None Same Day $18.25
41718 9/16 (0.563)" 417 Round Die 9/16 None Same Day $18.25
41719 19/32 (0.594)" 417 Round Die 19/32 None Same Day $18.25
41720 5/8 (0.625)" 417 Round Die 5/8 None Same Day $18.25
41721 21/32 (0.656)" 417 Round Die 21/32 None Same Day $18.25
41722 11/16 (0.688)" 417 Round Die 11/16 None Same Day $18.25
41723 23/32 (0.719)" 417 Round Die 23/32 None Same Day $18.25
41724 3/4 (0.750)" 417 Round Die 3/4 None Same Day $18.25
41725 25/32 (0.781)" 417 Round Die 25/32 None Same Day $18.25
41726 13/16 (0.813)" 417 Round Die 13/16 None Same Day $18.25
41727 27/32 (0.844)" 417 Round Die 27/32 None Same Day $18.25
41728 7/8 (0.875)" 417 Round Die 7/8 None Same Day $18.25
41729 29/32 (0.906)" 417 Round Die 29/32 None Same Day $18.25
41730 15/16 (0.938)" 417 Round Die 15/16 None Same Day $18.25
41731 31/32 (0.969)" 417 Round Die 31/32 None Same Day $18.25
41732 1 (1.000)" 417 Round Die 1" None Same Day $18.25
41733 1-1/32 (1.031)" 417 Round Die 1-1/32 None Same Day $18.25
41734 1-1/16 (1.063)" 417 Round Die 1-1/16 None Same Day $18.25
41735 1-3/32 (1.094)" 417 Round Die 1-3/32 None Same Day $18.25
41736 1-1/8 (1.125)" 417 Round Die 1-1/8 None Same Day $18.25
41737 1-5/32 (1.156)" 417 Round Die 1-5/32 None Same Day $18.25
41738 1-3/16 (1.188)" 417 Round Die 1-3/16 None Same Day $18.25
41739 1-7/32 (1.219)" 417 Round Die 1-7/32 None Same Day $18.25
41740 1-1/4 (1.250)" 417 Round Die 1-1/4 None Same Day $18.25
41741 1-9/32 (1.281)" 417 Round Die 1-9/32 None Same Day $18.25
41742 1-5/16 (1.313)" 417 Round Die 1-5/16 None Same Day $18.25
41744 1-3/8 (1.375)" 417 Round Die 1-3/8 None Same Day $18.25
417RD 417 Round Die in Any size not shown None 24 hours $31.60
417RD 417 Round Die in any size not shown (without whistle spot) None 24 hours $31.60
Part No. Size Description Locating Spot Availability Price Quantity Purchase
41790815 1/4 x 15/32 (0.250 x 0.469)" 417 Oblong Die 1/4 x 15/32 With 2 Whistle Spots 2 Whistles 24 hours $75.70
41790933 9/32 x 1-1/32 (0.281 x 1.031)" 417 Oblong Die 9/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791019 5/16 x 19/32 (0.313 x 0.594)" 417 Oblong Die 5/16 x 19/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791025 5/16 x 25/32 (0.313 x 0.781)" 417 Oblong Die 5/16 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791033 5/16 x 1-1/32 (0.313 x 1.031)" 417 Oblong Die 5/16 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791117 11/32 x 17/32 (0.344 x 0.531)" 417 Oblong Die 11/32 x 17/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791125 11/32 x 25/32 (0.344 x 0.781)" 417 Oblong Die 11/32 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791133 11/32 x 1-1/32 (0.344 x 1.031)" 417 Oblong Die 11/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791223 3/8 x 23/32 (0.375 x 0.719)" 417 Oblong Die 3/8 x 23/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791325 13/32 x 25/32 (0.406 x 0.781)" 417 Oblong Die 13/32 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791333 13/32 x 1-1/32 (0.406 x 1.031)" 417 Oblong Die 13/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791341 13/32 x 1-9/32 (0.406 x 1.281)" 417 Oblong Die 13/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791433 7/16 x 1-1/32 (0.438 x 1.031)" 417 Oblong Die 7/16 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791525 15/32 x 25/32 (0.469 x 1.781)" 417 Oblong Die 15/32 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791529 15/32 x 29/32 (0.469 x 1.906)" 417 Oblong Die 15/32 x 29/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791533 15/32 x 1-1/32 (0.469 x 1.031)" 417 Oblong Die 15/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791535 15/32 x 1-3/32 (0.469 x 1.094)" 417 Oblong Die 15/32 x 1-3/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791541 15/32 x 1-9/32 (0.469 x 1.281)" 417 Oblong Die 15/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791725 17/32 x 25/32 (0.531 x 0.781)" 417 Oblong Die 17/32 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791733 17/32 x 1-1/32 (0.531 x 1.031)" 417 Oblong Die 17/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791741 17/32 x 1-9/32 (0.531 x 1.281)" 417 Oblong Die 17/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791833 9/16 x 1-1/32 (0.563 x 1.031)" 417 Oblong Die 9/16 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791925 19/32 x 25/32 (0.594 x 0.781)" 417 Oblong Die 19/32 x 25/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791933 19/32 x 1-1/32 (0.594 x 1.031)" 417 Oblong Die 19/32 X 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41791941 19/32 x 1-9/32 (0.594 x 1.281)" 417 Oblong Die 19/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792034 5/8 x 1-1/16 (0.625 x 1.063)" 417 Oblong Die 5/8 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792042 5/8 x 1-5/16 (0.625 x 1.313)" 417 Oblong Die 5/8 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792133 21/32 x 1-1/32 (0.656 x 1.031)" 417 Oblong Die 21/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792141 21/32 x 1-9/32 (0.656 x 1.281)" 417 Oblong Die 21/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792234 11/16 x 1-1/16 (0.688 x 1.063)" 417 Oblong Die 11/16 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792242 11/16 x 1-5/16 (0.688 x 1.312)" 417 Oblong Die 11/16 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792333 23/32 X 1-1/32 (0.719 x 1.031)" 417 Oblong Die 23/32 X 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792341 23/32 x 1-9/32 (0.719 x 1.281)" 417 Oblong Die 23/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792434 3/4 x 1-1/16 (0.750 x 1.063)" 417 Oblong Die 3/4 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792436 3/4 x 1-1/8 (0.750 x 1.125)" 417 Oblong Die 3/4 x 1-1/8 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792442 3/4 x 1-5/16 (0.750 x 1.313)" 417 Oblong Die 3/4 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792533 25/32 x 1-1/32 (0.781 x 1.031)" 417 Oblong Die 25/32 x 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792541 25/32 x 1-9/32 (0.781 x 1.281)" 417 Oblong Die 25/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792634 13/16 x 1-1/16 (0.813 x 1.063)" 417 Oblong Die 13/16 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792733 27/32 X 1-1/32 (0.844 x 1.031)" 417 Oblong Die 27/32 X 1-1/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792735 27/32 x 1-3/32 (0.844 x 1.094)" 417 Oblong Die 27/32 x 1-3/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792741 27/32 x 1-9/32 (0.844 x 1.281)" 417 Oblong Die 27/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792834 7/8 x 1-1/16 (0.875 x 1.063)" 417 Oblong Die 7/8 x 1-1/16 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792836 7/8 x 1-1/8 (0.875 x 1.125)" 417 Oblong Die 7/8 x 1-1/8 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792842 7/8 x 1-5/16 (0.875 x 1.313)" 417 Oblong Die 7/8 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $75.70
41792941 29/32 x 1-9/32 (0.906 x 1.281)" 417 Oblong Die 29/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41793042 15/16 x 1-5/16 (0.938 x 1.313)" 417 Oblong Die 15/16 x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $75.70
41793141 31/32 x 1-9/32 (0.969 x 1.281)" 417 Oblong Die 31/32 x 1-9/32 With 2 Whistle Spots 2 Whistles Same Day $75.70
41793242 1 x 1-5/16 (1.000 x 1.313)" 417 Oblong Die 1" x 1-5/16 With 2 Whistle Spots 2 Whistles Same Day $75.70
417OB 417 Oblong Die in Any size not shown 2 Whistles 24 hours $95.60
Part No. Size Description Locating Spot Availability Price Quantity Purchase
417809 9/32 (0.281)" 417 Square Die 9/32 1 Whistle Spot 1 Whistle Same Day $75.70
417811 11/32 (0.344)" 417 Square Die 11/32 1 Whistle Spot 1 Whistle Same Day $75.70
417813 13/32 (0.406)" 417 Square Die 13/32 1 Whistle Spot 1 Whistle Same Day $75.70
417814 7/16 (0.438)" 417 Square Die 7/16 1 Whistle Spot 1 Whistle Same Day $75.70
417815 15/32 (0.469)" 417 Square Die 15/32 1 Whistle Spot 1 Whistle Same Day $75.70
417817 17/32 (0.531)" 417 Square Die 17/32 1 Whistle Spot 1 Whistle Same Day $75.70
417818 9/16 (0.563)" 417 Square Die 9/16 1 Whistle Spot 1 Whistle Same Day $75.70
417819 19/32 (0.594)" 417 Square Die 19/32 1 Whistle Spot 1 Whistle Same Day $75.70
417820 5/8 (0.625)" 417 Square Die 5/8 1 Whistle Spot 1 Whistle Same Day $75.70
417821 21/32 (0.656)" 417 Square Die 21/32 1 Whistle Spot 1 Whistle Same Day $75.70
417822 11/16 (0.688)" 417 Square Die 11/16 1 Whistle Spot 1 Whistle Same Day $75.70
417823 23/32 (0.719)" 417 Square Die 23/32 1 Whistle Spot 1 Whistle Same Day $75.70
417825 25/32 (0.781)" 417 Square Die 25/32 1 Whistle Spot 1 Whistle Same Day $75.70
417826 13/16 (0.813)" 417 Square Die 13/16 1 Whistle Spot 1 Whistle Same Day $75.70
417827 27/32 (0.844)" 417 Square Die 27/32 1 Whistle Spot 1 Whistle Same Day $75.70
417829 29/32 (.906)" 417 Square Die 29/32 1 Whistle Spot 1 Whistle Same Day $75.70
417SQ 417 Square Die in Any size not shown 1 Whistle 24 hours $95.60
Part No. Size Description Locating Spot Availability Price Quantity Purchase
417HX 417 Hex Die in Any size not shown 1 Whistle 24 hours $95.60
Part No. Size Description Locating Spot Availability Price Quantity Purchase
417RC 417 Rectangle Die in Any size not shown 2 Whistles 24 hours $95.60
